RY36 A B C series Common rail pressure sensor
Product features:
Glass micro-melting process, integrated
structure,
Full temperature range digital
compensation,
Small size, easy installation,
Suitable for mass production and use,
economical and reliable
Applicable fields
Diesel vehicle ECU control system
Product overview
High-pressure common rail EFI technology
refers to a closed-loop system composed of a high-pressure oil pump, a pressure
sensor and an electronic control unit (ECU), which completely separates the
generation of injection pressure and the injection process from each other. The
RY36 series sensors are divided into three types: A, B and C: RY36A, RY36B,
RY36C. The product quality is excellent and can completely replace similar
products from European, American and Japanese brands.
Performance parameters
Power supply: 5V DC
Reference temperature: 25 °C

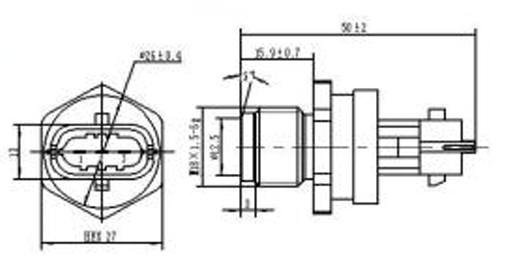

RY36A series appearance structure:

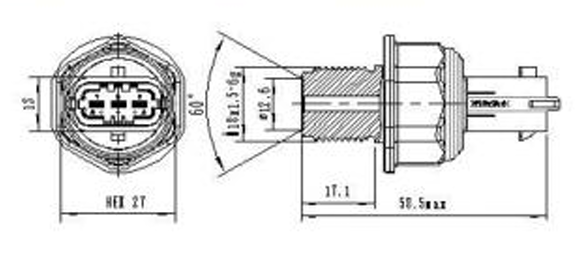

RY36B series appearance structure:
Pressure sensor parameters
-
Item
Value
Unit
Response Frequency
3.2
KHz
Protection Level
65
IP
Accuracy
±2.5
%Span
Zero temperature drift
±0.03
%FS/℃
Full scale temperature drift
±0.03
%FS/℃
Long term stability
±0.25
%Span
Insulation resistance
(250VDC)100
MΩ
Overload Pressure
2X
Rated
Destroying Pressure
3X
Rated
Pressure Cycle
10
Million
Compensation temperature
-40~125
℃
Working temperature
-40~125
℃
Storage temperature
-40~125
℃
Vibration frequency
±20
g
Shock (11ms)
100
g

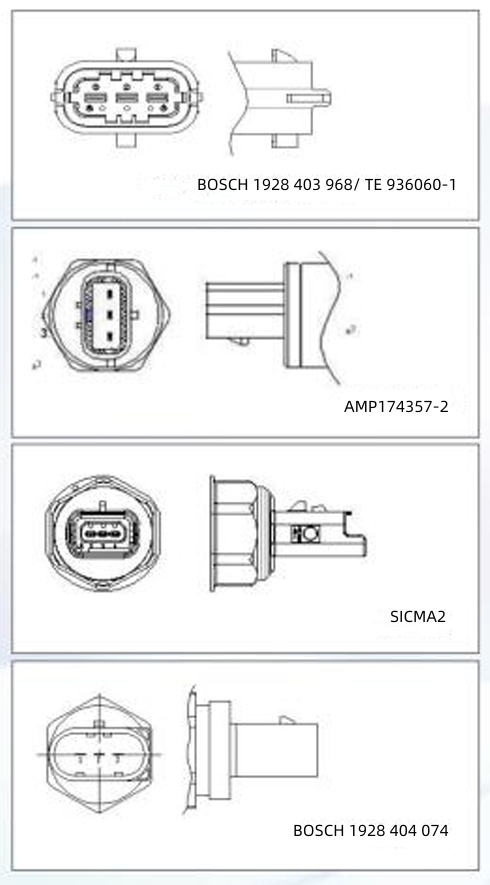

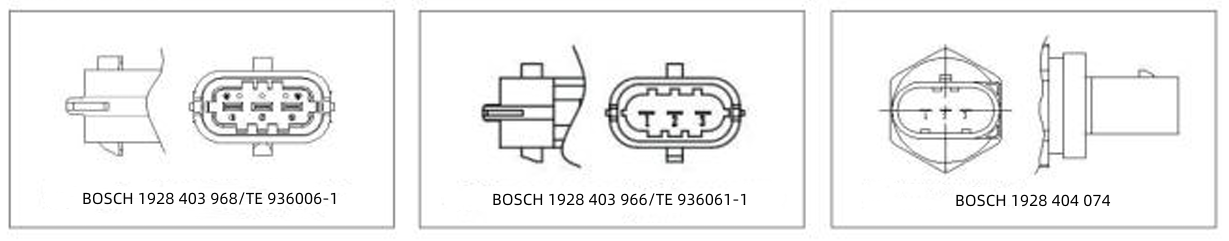

Output interface type
